Load Collision Protection for Cranes Using Lidar Technology
In dynamic work environments, protecting against load collisions is crucial. Our Cranium system uses state-of-the-art Lidar sensors to reliably detect potential hazards and avoid them with precision.
Load Collision Protection for Cranes Using Lidar Technology
In dynamic work environments, protecting against load collisions is crucial. Our Cranium system uses state-of-the-art Lidar sensors to reliably detect potential hazards and avoid them with precision.
How Does the Load Collision Protection Work?
Cranium continuously scans the area around the crane load using high-resolution Lidar sensors. From this data, the system generates a precise 3D map of the surroundings. This map is analyzed in real time to:
Cranium continuously scans the area around the crane load using high-resolution Lidar sensors. From this data, the system generates a precise 3D map of the surroundings. This map is analyzed in real time to:
- Detect dynamic obstacles such as people, vehicles, or moving components
- Automatically maintain safety distances
- Proactively prevent collisions
This results in an intelligent, predictive movement profile of the crane load — a key component for Soft Landing, meaning the smooth, controlled placement of loads near obstacles or target positions.
In practice, the use of slow travel near obstacles has proven effective: this allows the system to withdraw from potentially risky situations in a controlled manner, without coming to an abrupt stop.
Want to find out if load collision protection makes sense for your operation?
Let’s identify the potential together.
Technical Facts About Load Collision Protection
-
Dynamic Obstacle Detection
Detects moving obstacles such as vehicles or people in real time.
-
Precise Distance Measurement
Centimeter-accurate detection for safe approach and braking.
-
Soft Landing Support
Gentle placement of the load even in tight or hard-to-see areas.
-
Slow Motion During Obstruction
Controlled slow movement instead of sudden stops in high-risk situations.
-
Object Classification
Distinguishes between people, containers, vehicles, and structures.
-
Coupling Detection
Detects when, for example, trailers are unintentionally lifted along with the load.
Every terminal is different. We’ll show you which modules fit your existing infrastructure and how you can automate step by step.
Real-World Application Example

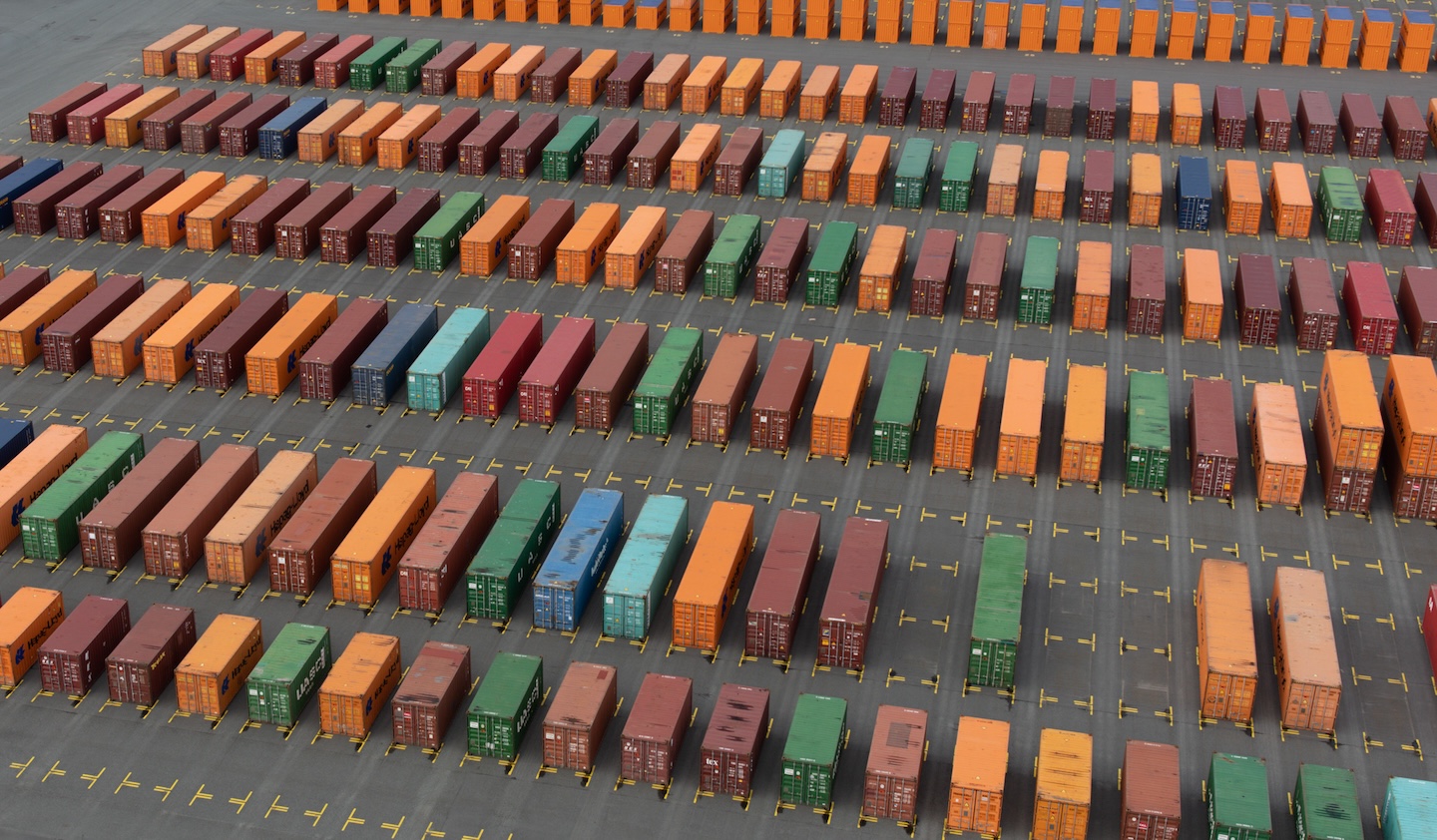

Intermodal Terminal
Usage
Safe crane movements during container handling between trailers, semi-trailers, and ground positions.
Functionalities
- Detection of maneuvering vehicles or parked containers
- Detection of unintentional lifting of a trailer
- Real-time 3D environment analysis for immediate motion adjustment
Advantage
Reduction of operating errors, protection against costly accidents, and increased operational safety in dynamic terminal operations.
These Modules Enable Load Collision Protection
Base

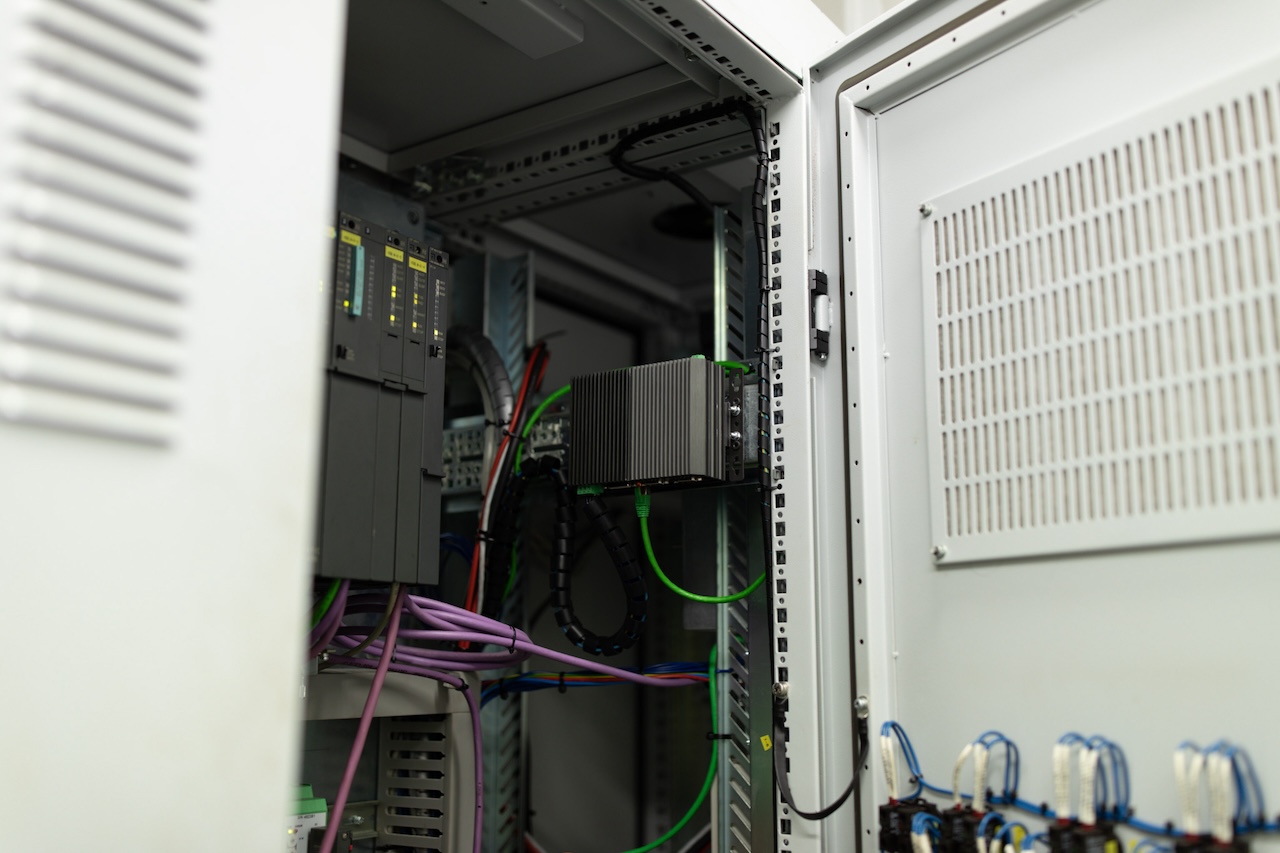

The base module is the core of our automation technology. It runs on a compact industrial PC and connects seamlessly via Ethernet to your crane PLC.
More information about the base module
